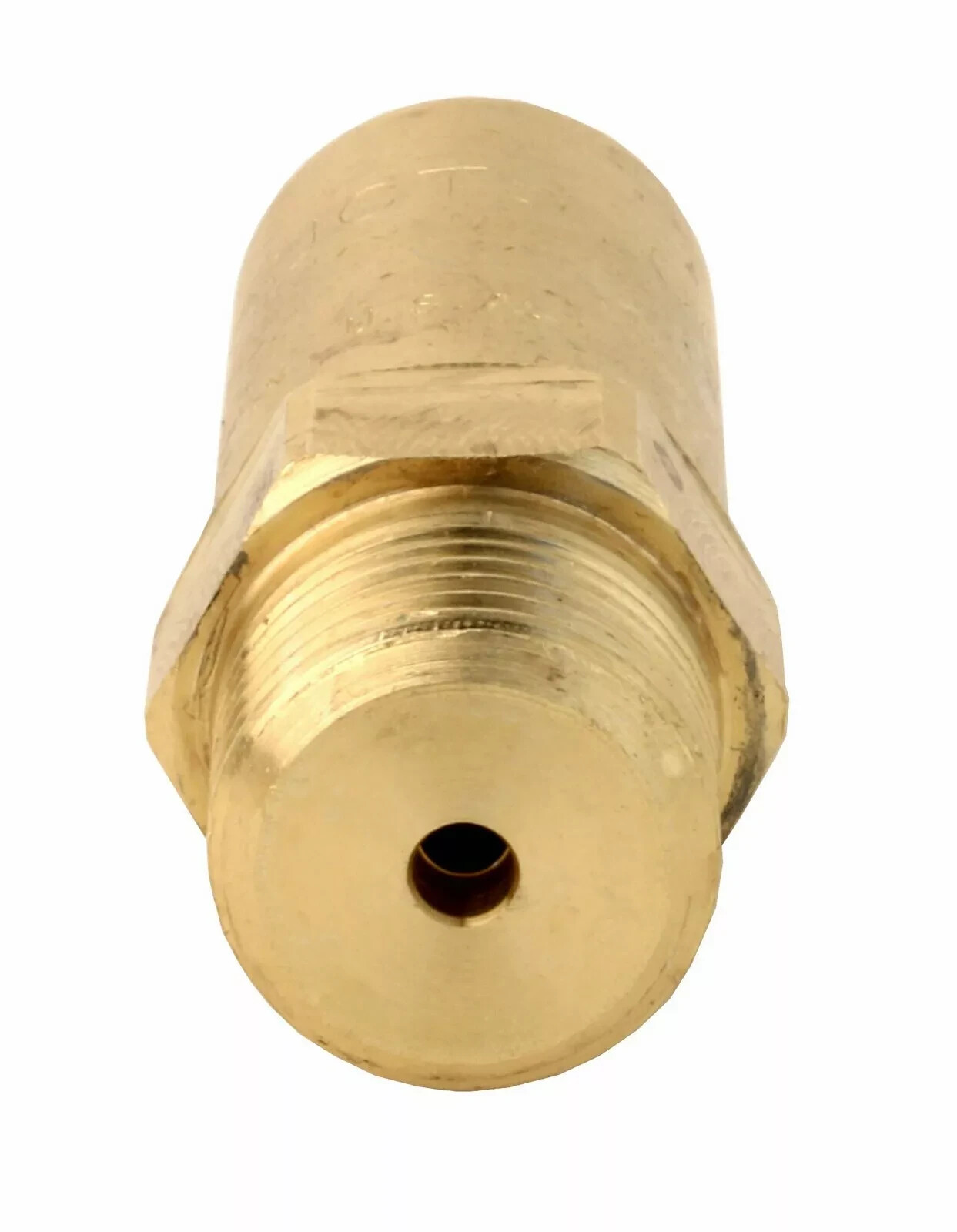

Giant 22533A 3/8 NPT 5000 PSI Pressure Washer Pump Safety Pop Off Valve Brass
Specifications
| Return Shipping Will Be Paid By | Buyer |
| All Returns Accepted | Returns Accepted |
| Item Must Be Returned Within | 30 Days |
| Refund Will Be Given As | Money Back |
| Brand | Giant |
| Type | Pump Parts |
| Type (eBay) | Pump Parts |
| Country Of Manufacture | United States |
| MPN | 22533A |
| Country/Region Of Manufacture | United States |
| Maximum Pressure | 5000 psi |
Giant 22533A 3/8 NPT 5000 PSI Pressure Washer Pump Safety Pop Off Valve - Brass This valve is designed to relieve the system of higher than normal pressures. It is normally set at 15-20% above the normal operating pressure. Once the pressure falls below the set point, it will automatically re-set. It will operate in this manner for a limited number of times. This valve does not arrive pre-set. A pressure gauge is required to set. Maximum Flow: 10 GPM Minimum Flow: 1 GPMMaximum Temperature: 160 F Inlet Port: 3/8Outlet Port: 3/4" Hose Barb Min. Pressure 3600 Psi Max. Pressure 5,000 PsiDimensions: 0.75" X 2.06" 1) Position the pop-off valve on the discharge side of the pumping unit between the pump and the unloader. 3/8" MNPT is the inlet. (Mount unit directly onto the pump for best results.)2) Adjust the valve relief pressure setting as follows. Start the pump with the shut-off gun open and adjust the system pressure to 600 PSI (minimum) above the normal operating pressure. b. If the valve opens or leaks, stop the pump. c. Use a 1/4 inch allen wrench to turn the adjusting screw clockwise to increase the pressure so that the spring is compressed. d. Repeat steps a-c (above) until the valve does not open or leak at a minimum of 600 PSI above the normal operating pressure. 3) Reset the system pressure back to the normal operation. 4) A hose may be clamped over the outlet of the valve if desired. The other end of the hose may then be placed in a sewer, float tank, or other suitable drain.
